Description

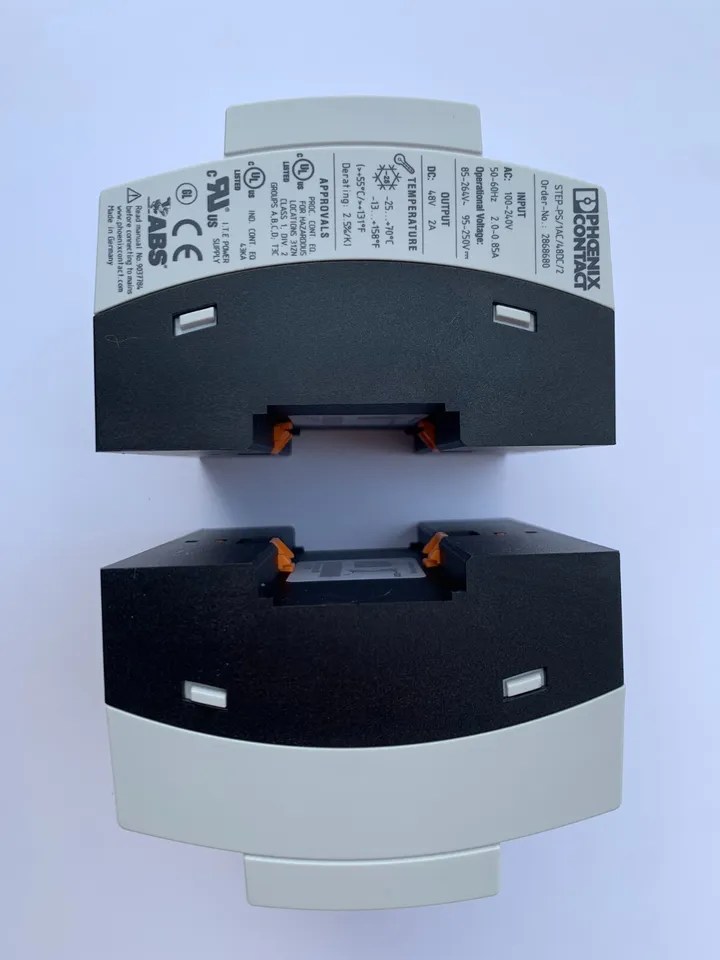

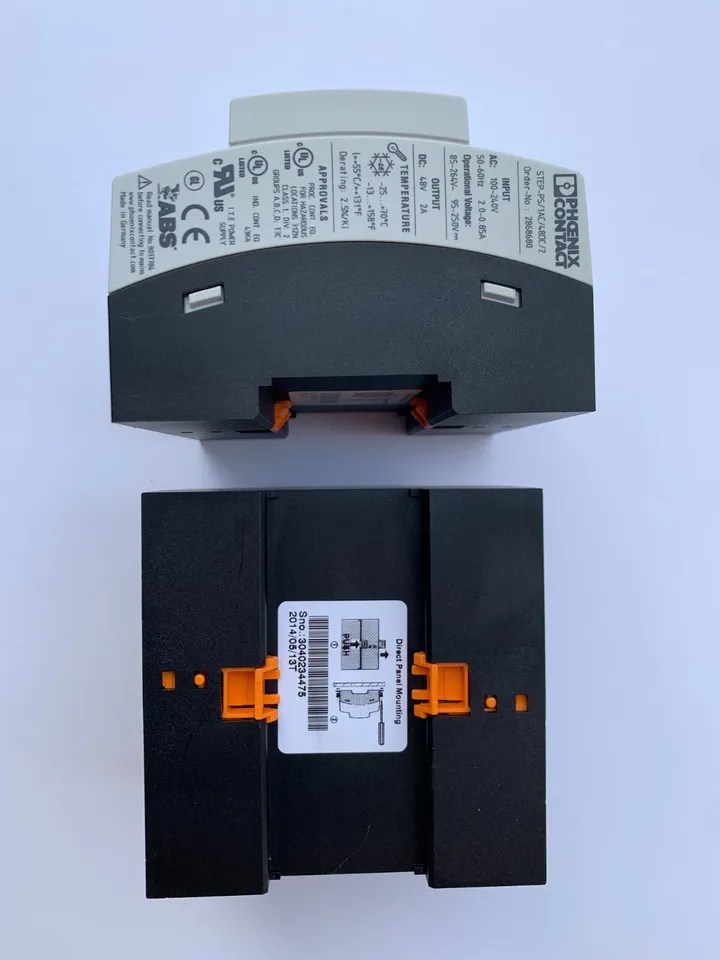

Phoenix Contact STEP-PS/1AC/24DC/2.5 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24Vdc dc Output
Specifications
| Attribute | Value |
| Type | Switch Mode |
| Output Voltage | 24V dc |
| Output Current | 2.5A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Power Rating | 60W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 61mm |
| Depth | 90mm |
| Series | STEP-PS/1AC/24DC/2.5 |
| Efficiency | >86% |
| Minimum Temperature | -25°C |
| Mounting Type | DIN Rail Mount |
| Load Regulation | ±1% |
| MTBF | 1061650h |
| Ripple And Noise | 80mV Pk-Pk |
| Special Features | Low Profile Design |
| Maximum Temperature | +70°C |
