Description

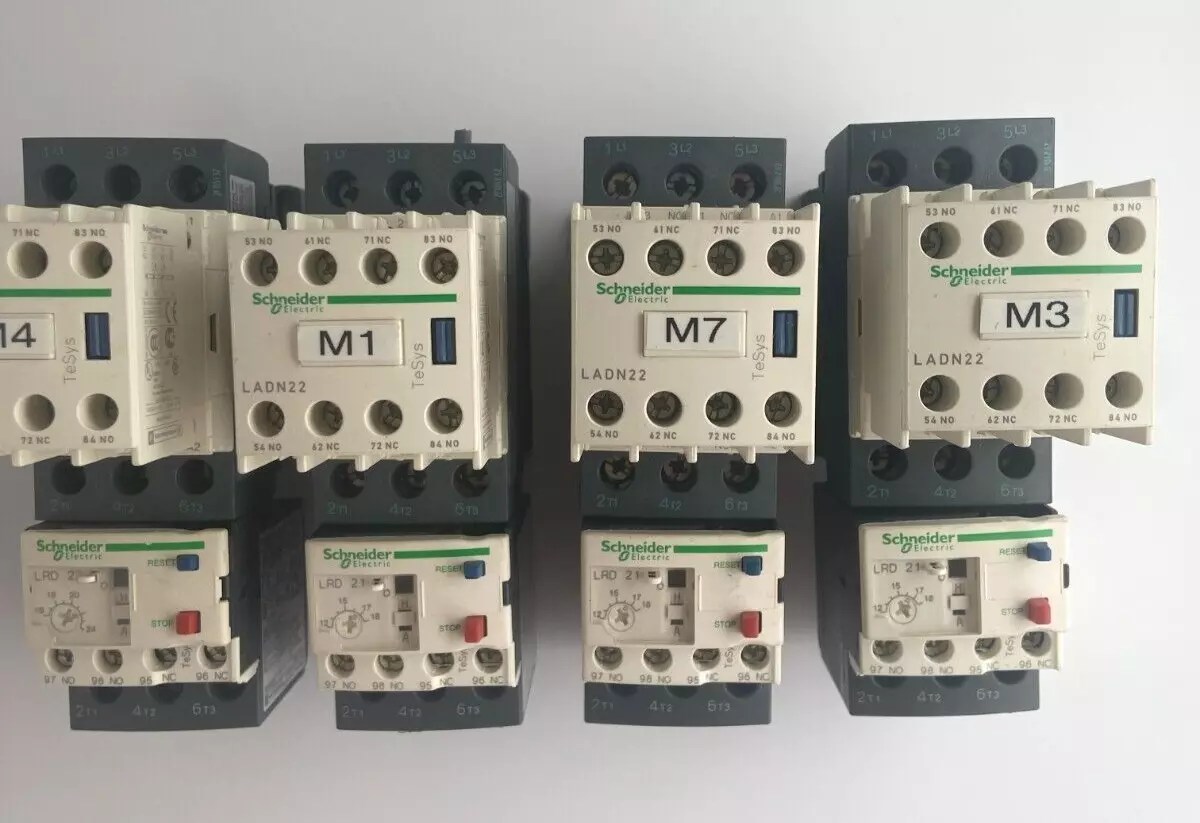

4 x Schneider Electric LADN22 Aux Contact 4 Contact 2NC 2NO Front Mount, TeSys
+
4 x Schneider Electric LRD21 Thermal Overload Relay 1NO + 1NC, 12 → 18 A F.L.C, 18 A Contact Rating, 3P, TeSys
Specifications LADN22
|
Desc
|
Value
|
|---|---|
| Number of Contacts | 4 |
| Normal State Configuration | 2NC + 2NO |
| Mounting Style | Front Mount |
| Range | TeSys |
| Series | LADN |
| Contact Current Rating | 10 A |
| Terminal Type | Screw |
| Pole and Throw Configuration | 4P |
| Contact Voltage Rating | 600 V ac |
| Better World Product | Yes |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Better World Verification | Green Premium |
Specifications LRD21
|
Desc
|
Value
|
|---|---|
| FLC Motor Rating | 12 → 18 A |
| Contact Current Rating | 18 A |
| Range | TeSys |
| Pole Configuration | 3P |
| Series | LRD |
| Mounting Style | Direct Contactor |
| Normal State Configuration | 1NO + 1NC |
| Reset Method | Automatic, Manual |
| Terminal Type | Screw |
| Width | 45mm |
| Number Of Auxiliary Contacts | 2 |
| Length | 66mm |
| Depth | 70mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Operating Temperature Range | -20 → +60 °C |
| Supply Voltage | 690 V ac |
| Contact Voltage Rating | 690 V ac |
Reviews
There are no reviews yet.
